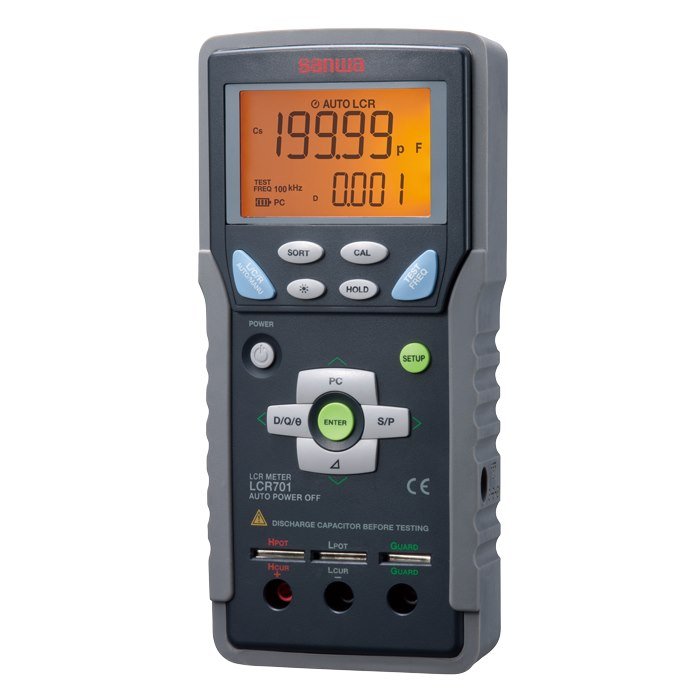

A handheld digital LCR meter measuring inductance, capacitance and resistance at five test frequencies.
A handheld digital LCR meter measuring inductance, capacitance and resistance at five test frequencies. Key capabilities include Inductance to 20kH, capacitance to 20mF; Resistance to 200MΩ over eight ranges; Five test frequencies 100Hz to 100kHz.
The LCR701 Digital LCR Meter is supplied by Filosha Industrial as a genuine LCR meter with technical support and fast delivery across India and the GCC. It supports accurate component measurement and sorting on the electronics bench and production line.
| Inductance | 20kH max |
|---|---|
| Capacitance | 20mF max |
| Resistance | 200 MΩ |
| Frequencies | 100/120/1k/10k/100kHz |
| Sub-parameters | D, Q, θ, ESR |
| Standards | IEC61326-1, EN50581 |
Specifications are indicative. Contact us for full technical data, datasheets and available variants.
A compact handheld digital multimeter for measuring voltage, current, resistance, capacitance and frequency.
A True RMS digital multimeter with high 6000-count resolution and CAT IV safety rating for field electrical work.
A True RMS 6000-count digital multimeter rated CAT IV 600V for accurate AC measurement of distorted waveforms.
Tell us your requirement and our team will respond with pricing and technical details.
